Technical Overview
Sound power at max. speed (2010/30/EC)
62 dB
Max. air extraction
530 m³/h
Boost position air extraction
750 m³/h
Material body
Stainless steel, Glass
Built-in / Free-standing
Built-in
Highlights
Special Features

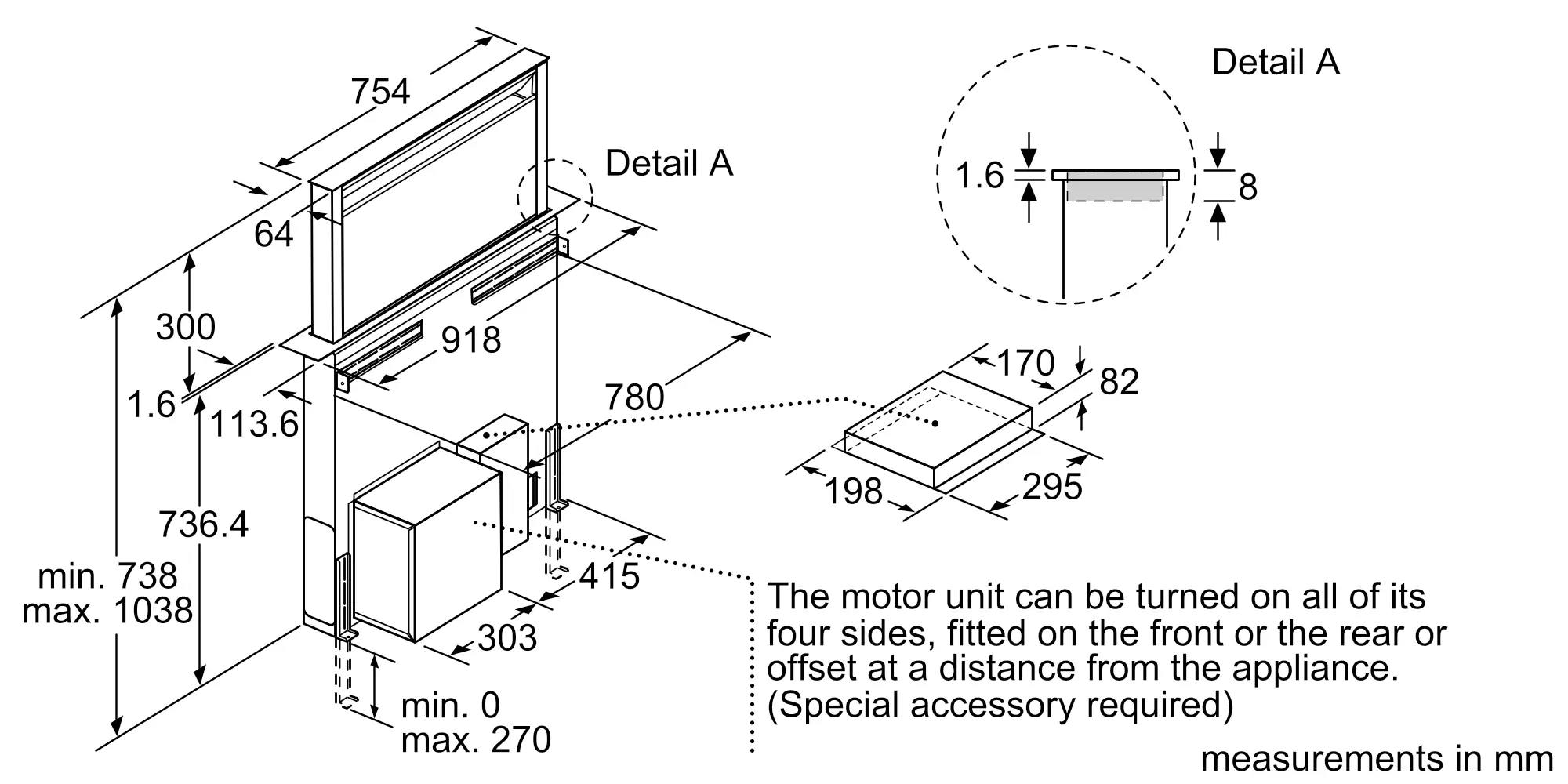

For optimal, energy-efficient illumination of your hob Removes strong kitchen odours quickly and effectively Flexible installation of the motor allows for maximum space inside the cabinet. A remarkable power of 380m3/h which ensures optimal kitchen air quality.
High performance at just 62 dB Installation typologyBuilt-in
Operating ModeConvertible
Total power of the motors310 W

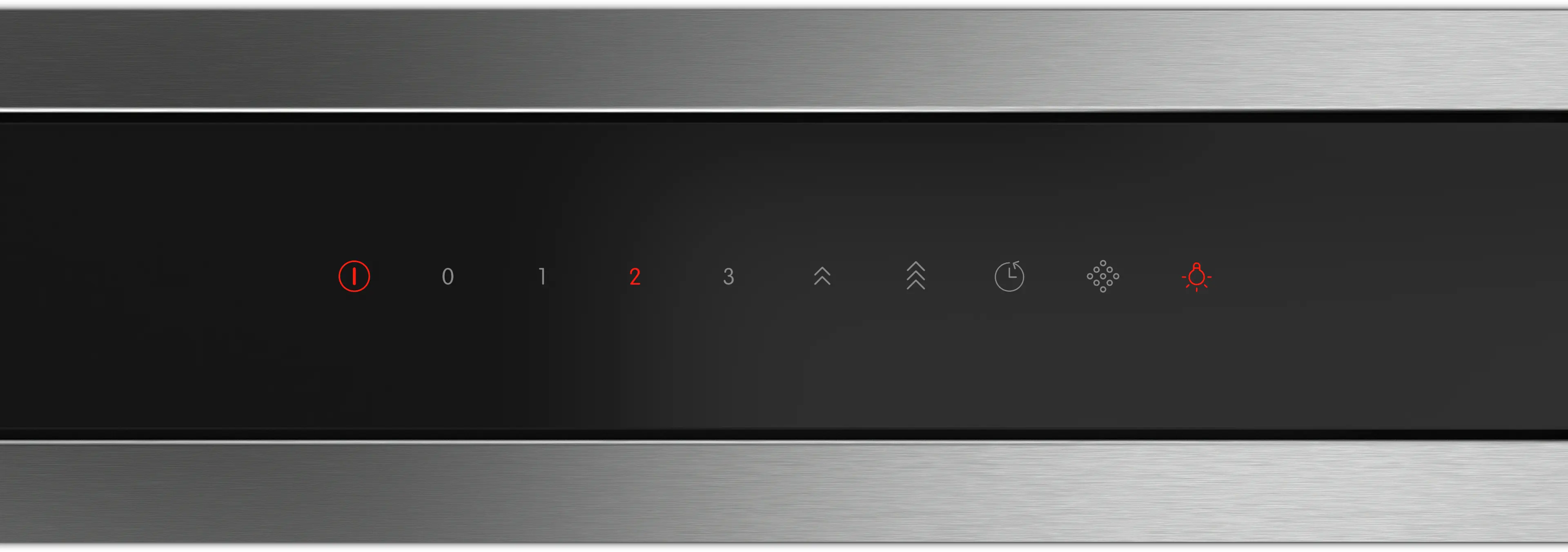

Type of control setting and signalling devicesglasstouch, touch control
Number of speed settings3-stage + 2 intensive
Max. air extraction530 m³/h
Boost position air extraction750 m³/h
Sound power at max. speed (2010/30/EC)62 dB
Sound power boost (2010/30/EC)67 dB
Max. air recirculation452 m³/h
Boost position output recirculating500.0 m³/h
Sound power at max. speed (recirculation)72 dB
Sound power boost (recirculation)75 dB

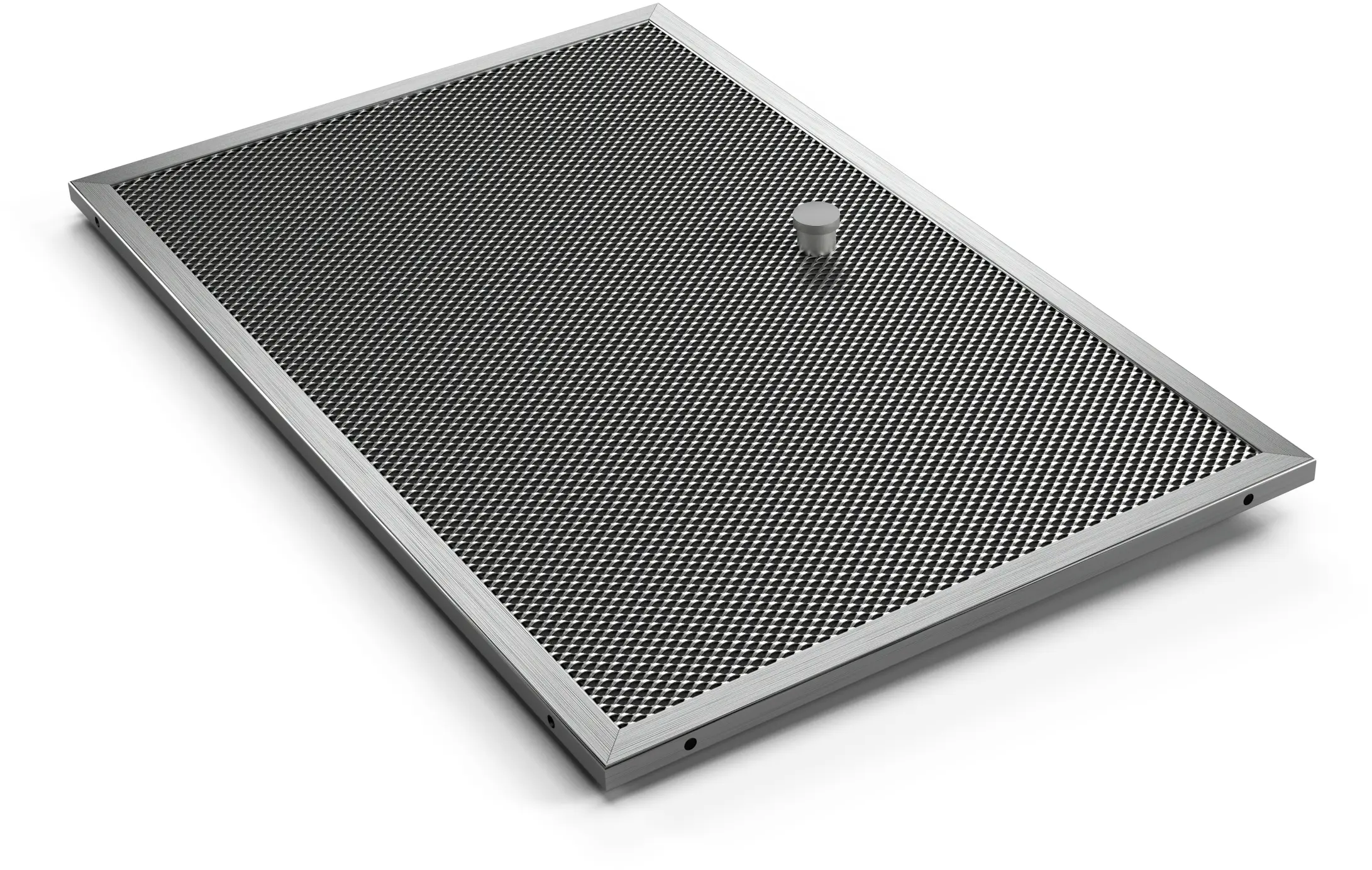

Grease filter materialWashable aluminium
Total annual energy consumption54.2 kWh/annum
Width of the appliance918 mm
Depth of the product268 mm
Diameter of air outlet150 mm
Length electrical supply cord150.0 cm

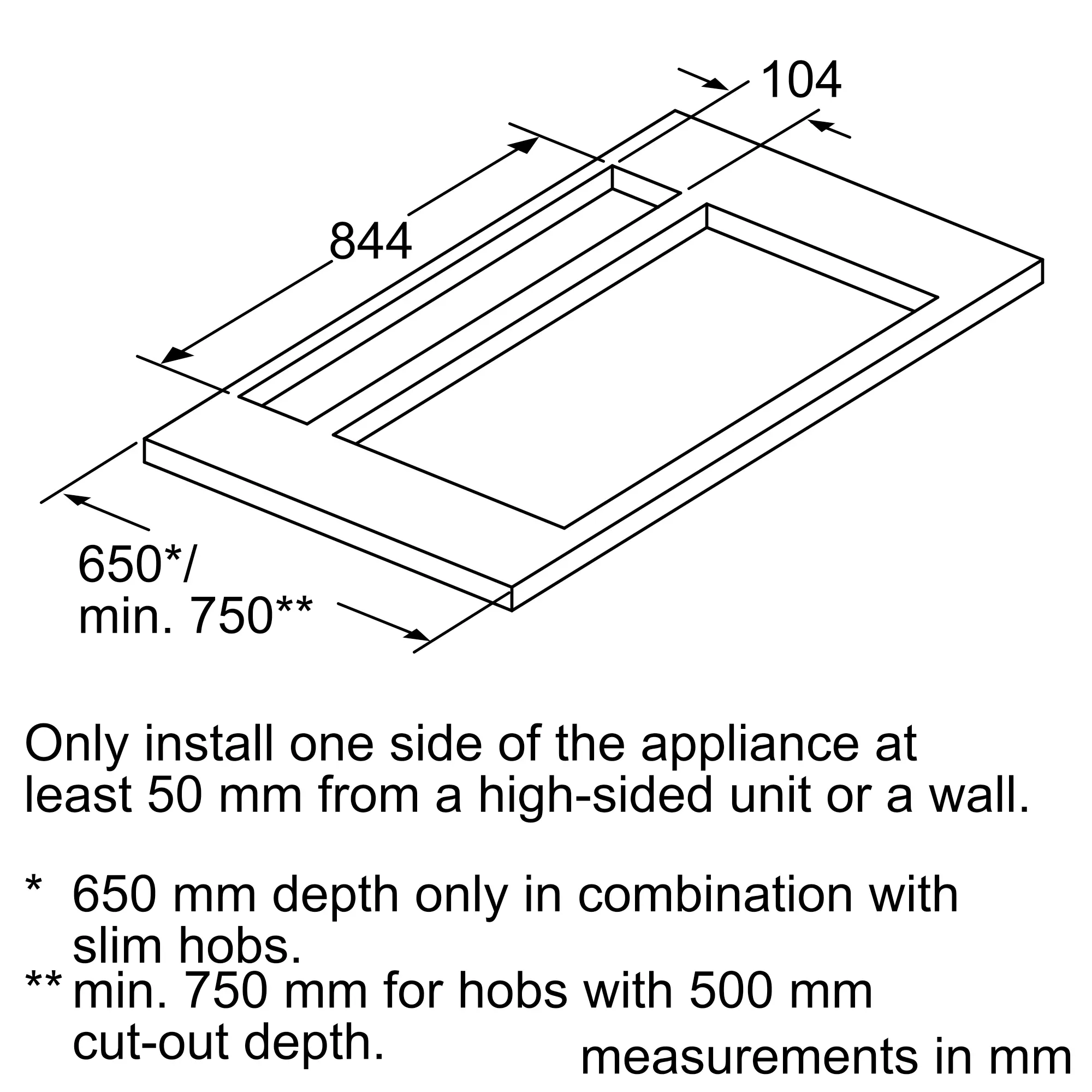

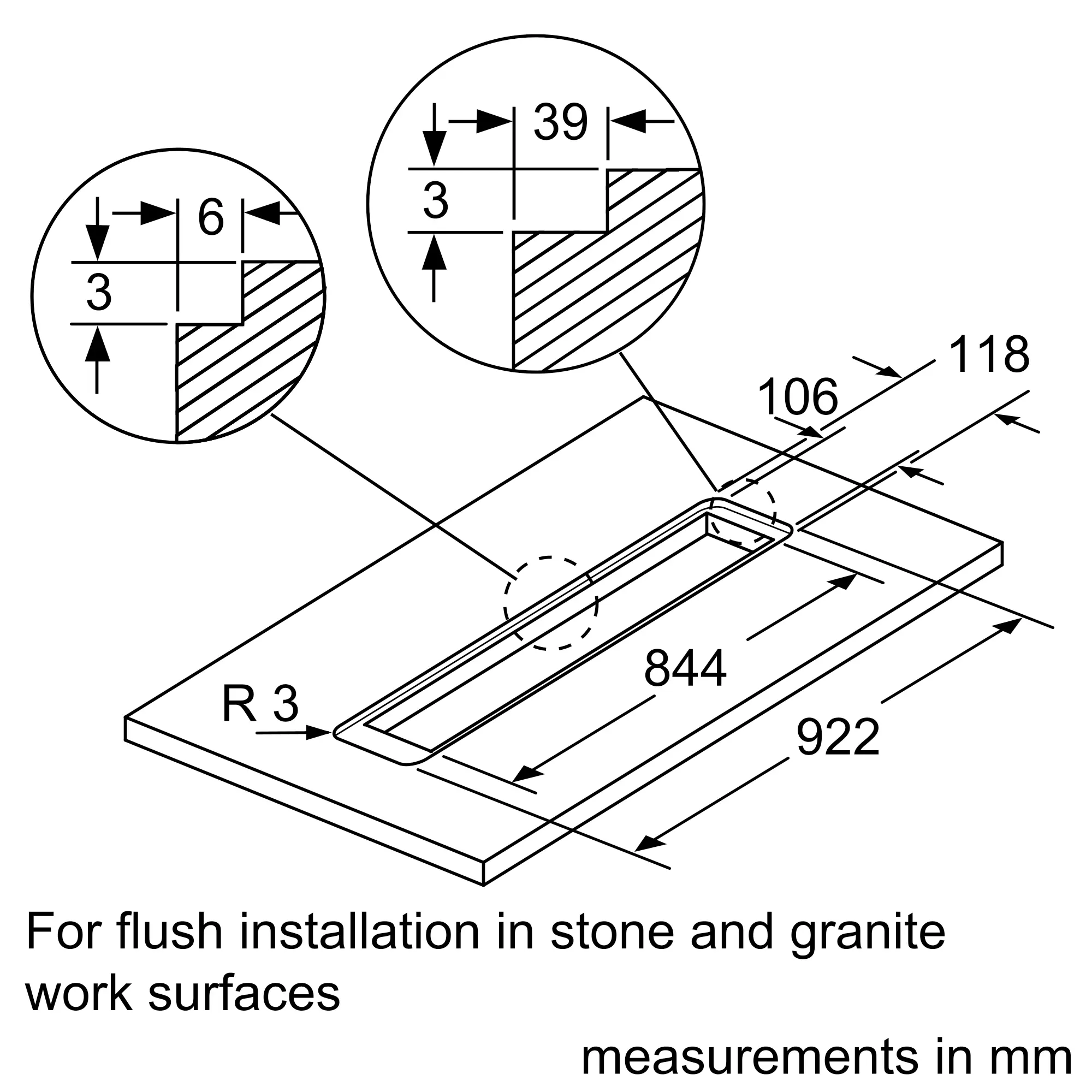

Minimum width for installation844 mm
Maximum width for installation844 mm
Depth for installation104 mm
EcoSilence Drive - efficient and extra silentNo
Delay Shut off modes10 min
Color temperatureNeutral (3.500 K)
